Software for High Resolution Electron Microscopy








Object and Exit Wave Reconstruction Package

The reconstruction software package consists of algorithms for obtaining exit wave functions and the specimen potential from a thru-focus-series together with aberration correcting phase plates, image alignment, Shiske filter object restoration and resolution extension through maximum entropy. A list of currently implemented functions are listed below.

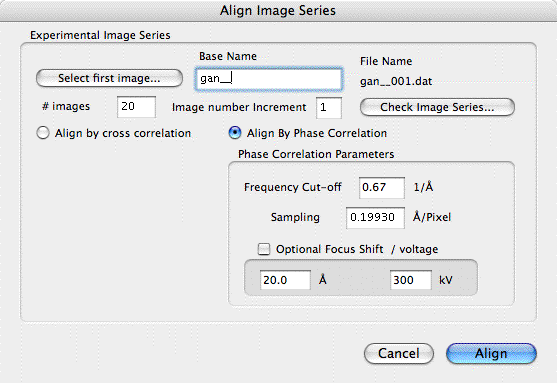

  • Image alignment of series using either cross correlation or phase correlation

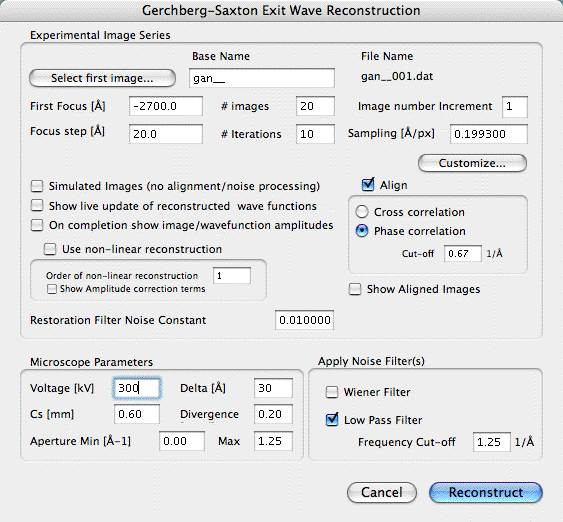

  • Gerchberg-Saxton algorithm for exit wave retrieval

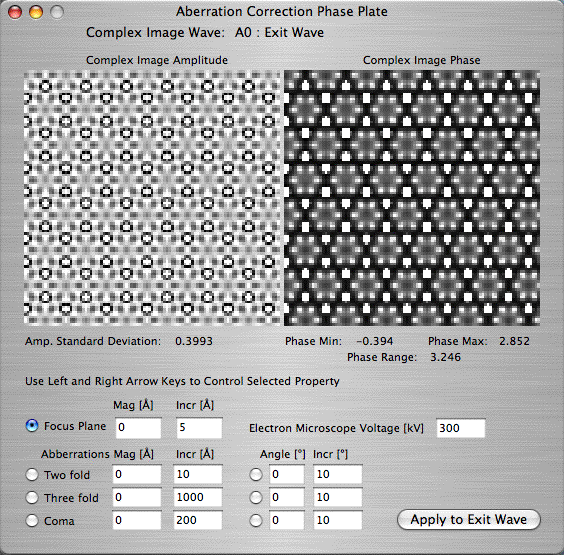

  • Aberration correcting phase plate

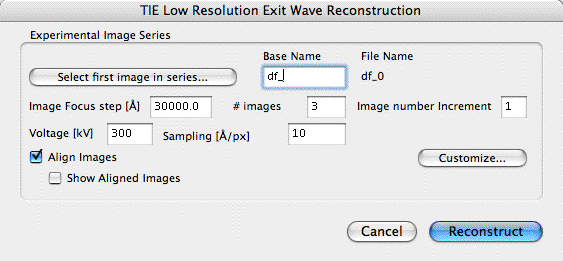

  • Low resolution Transport of Intensity reconstruction of exit wave
  • Shiske filter object restoration

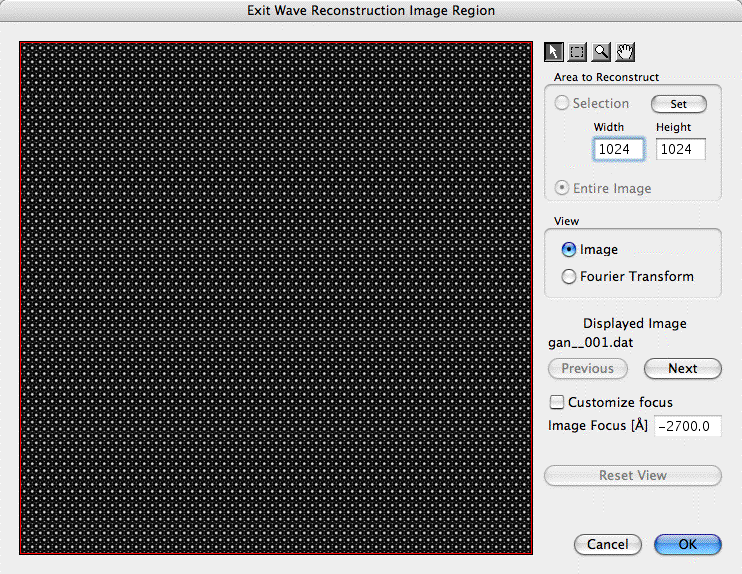

Example screen shots
